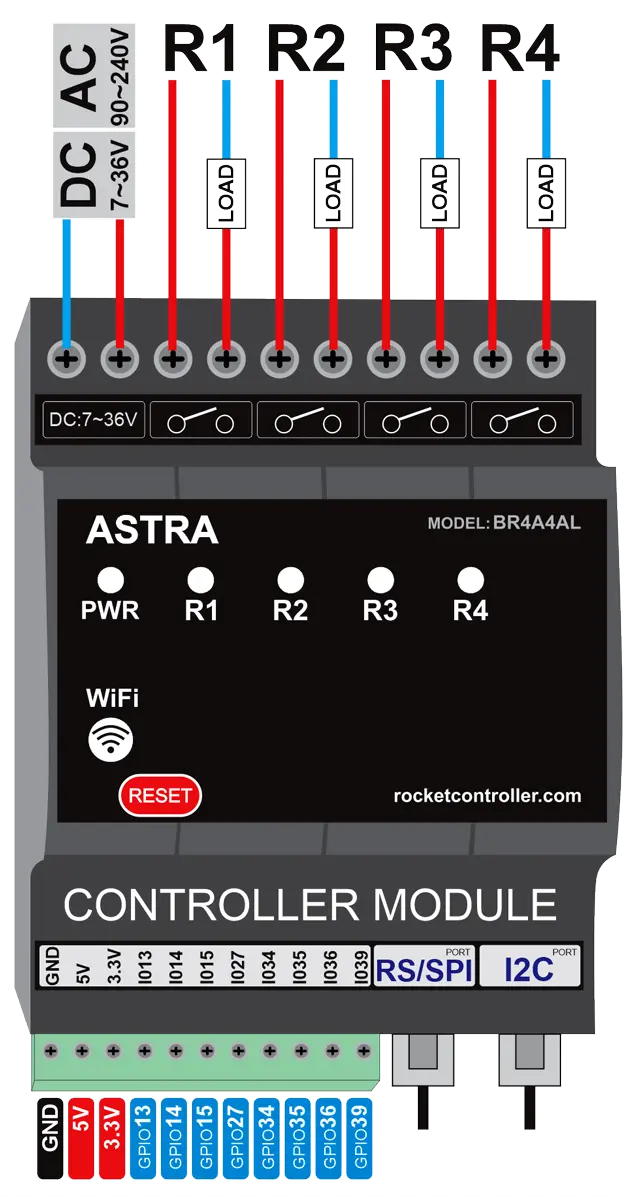

ASTRA - Smart controller for home and industry

All home functions are integrated into one automation system – ASTRA!

  • All units come with a WiFi and Bluetooth interface;
  • Basic units with Outputs: Relays 16A, Solid-State relays 16A, MOSFET 30A;
  • Versions for Inputs: isolated AC, isolated DC dry contact, direct GPIO 3.3V;
  • Several versions for different supply power DC 7~36V, AC 90~240V;
  • Integrated web server with web interface and MQTT protocol;
  • Extended temperature range -20 to 55°C, without condensation.

ASTRA! is the perfect choice as a fast, uncomplicated, and space-saving solution for launch control tasks. Configuration with AC or DC Inputs, Outputs Relays, SSR, MOSFETs. Power input AC or DC.

Features an impressive array of functions for individual solutions. And cost-effective, space-saving implementation, as well as comprehensive WiFi and expansion options, pay off when automating a home.
Opens up a wide range of control options for building functions, making it the perfect choice for fast, easy, and space-saving implementation of individual home automation projects. Provides the right solution for the convenient control of your heating, air-conditioning, lighting, irrigation, access control, garage door, presence detection, and for saunas and pools.
Especially handy is the controller’s ability to connect to a smart home server as well as convenient control via smartphone, tablet, and PC through WiFi.

A wide range of expansion modules allows the user to set up a flexible ASTRA! Configuration with AC or DC Inputs, Outputs like Relays, SSRs, MOSFETs

Garage

  • Garage Door: opening & closing. Automatization, RF KeyFob switch, and voice control
  • CO2 gas sensor, fire sensors. Alarm. Notification. Ventilation.

Laundry & boiler room

  • Power control and energy efficiency and monitoring. Timetable ON/OFF
  • Smart water heater, temperature control, and temperature limitation
  • Leak detection. Alarm. Notification. Automatization
  • Tap water valves, and water pump control
  • Propane/butane gas detection. Alarm. Notification. Ventilation.

Security

  • Smart locks
  • Camera and intercom
  • RFID and code access
  • Motion control.

Living room

  • Light control. Dimming. Automatization voice control
  • Light switch operation, script, and automatization
  • Shutters and Blinds. Sunlight protection. Timetable, automatization, voice control
  • Smart plugs and appliances
  • Termostate, heating & cooling. Air temperature. Timetable, automatization, voice control, ventilation.

Garden & waterpool

  • Garden lights. Timetable, automatization, motion control
  • Motion sensor. Security
  • Garden irrigation. Soil sensor. Water pump and valve control
  • Waterpool. Water level control. Water pump and valve control. Water temperature control. Water quality control.

Internal modules

  • RS-485/Modbus RTU
  • KNX
  • Z-Wave
  • NRF24
  • USB
  • RF433/315
  • Power meter/monitoring
  • LED light driver

Expansion modules

  • Relays 16A, AC Input
  • SSR 16A, AC Input
  • MOSFET 30A, DC Input
  • Ethernet LAN
  • ZigBee
  • LoRa WAN
  • GSM/LTE
  • RFID & keypad
  • Camera & intercom

TASMOTA – Open source firmware for ASTRA

Total local control of equipment and simple interface. TAMSOTA device firmware preinstalled and configured to ASTRA controller. Easy to configure for any customs projects. Easy to update and upgrade. Multilanguage interface.
Control using MQTT, Web UI, HTTP or serial.
Automate using timers, rules or scripts.
Integration with home automation solutions.
Incredibly expandable and flexible.

TASMOTA website – https://tasmota.github.io/docs/

Smart Home Integrations

ASTRA easily integrates with many home automation solutions reporting status and sensor data and allowing complete control.

  • Alexa
  • AWS IoT
  • Domoticz
  • Home Assistant
  • ESPHOME
  • Homebridge
  • HomeSeer
  • IP Symcon
  • KNX
  • NodeRed
  • nymea
  • OctoPrint
  • openHAB
  • IOBroker
  • Mozilla WebThings Adapter
  • SmartThings

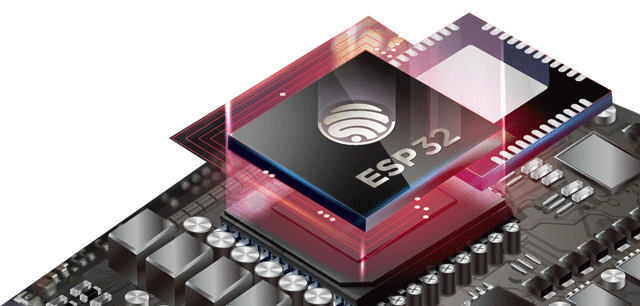

Powerful with ESP32 microcontroller, 2.4 GHz Wi-Fi and Bluetooth LE 5.0, ASTRA can perform as a complete standalone system or as a slave device to a main controller, reducing communication stack overhead on the main application processor. ESP32 can interface with other systems to provide Wi-Fi and Bluetooth functionality through its UART, I2C, SPI, SDIO interfaces.
